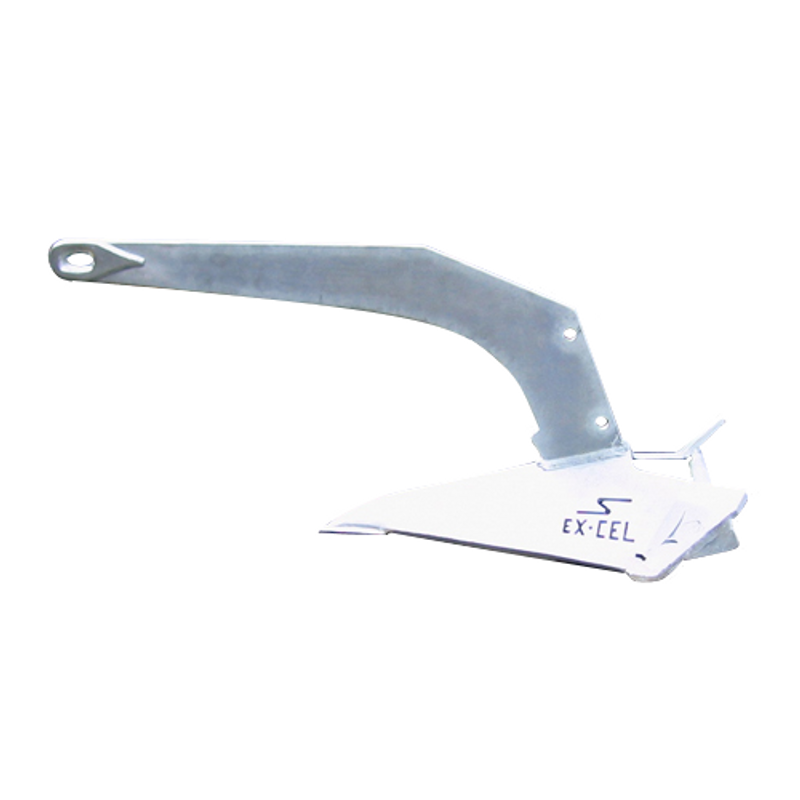

SARCA Galvanised Anchor – Excel

When the Excel was launched it was a breath of fresh air for those that wanted a new generation anchor without a roll bar, the Excel has great aesthetics and will enhance the bow of any boat, unlike roll bar designs the
Excel will fit just about any anchor housing arrangement—pull pit and bow roller designs, the Excel caters for boats from the smallest run a bout to large ocean going work boats, yachts and trawlers. When comparing the
Sarca Excel to other anchor designs it is traditional in looks only, when it comes to performance there is no comparison.
The Sarca Excel is a certified Super High Holding Power anchor, it has a cast filled ballast to ensure self righting, it is a new design of 70 percent convex, 30 percent concave, part of this concave being the cutting edges.
Excel is not a plough anchor there are no plough sheers, in their place is what are called single plain concave flukes, this being the greater part of its concave arrangement, rather than plough the substrate this new fluke arrangement is designed to compress, then directs the material-substrate over the rear of the Excel forcing itself deeper as more load is applied.
As a world first, the steel Excel version has a stainless steel cutting toe in combination with a steel fluke, this toe is not unlike the original Super Sarca toe in its shape, turned down giving instant penetration, it can be sharpened for weed or hard substrate types, being of stainless the cutting edges do not rust, all of the above makes the Excel possibly the deepest diving anchor on the market allowing incredible performance in heavy weed and many sea bed types
The Excel with its combination of convex –concave design has apertures along the sides of its flukes, whilst the anchor is being set these apertures allow water to be dragged through, this further aides the movement of compressed sea bed and assists the deep setting in hard mud or clay, these apertures work in reverse on retrieval and helps to bring up a relatively clean Excel on retrieval.With its shank being of bisaloy 80 or equivalent the build strength from the number four anchor and up of the Excel is exceptional, the bulbous on the underside of the toe aids in the Excel turning through wind and tide changes.
Features:
Tangle resistant.
Low centre of gravity self rights and keeps the toe hunting continuously to take advantage of the ocean floor.
Full range of anchors have been tested for super high holding power certification.
Unrivalled Holding Power.
Part NumberSizeBoat LengthSuits Approx. Boat WeightWeightLength to Bow (A)Internal Height (B)Length on Deck (C)Overall(W x H)
SAR-EXCELG1
1
Up to 5m
Up to 1.2T
7.5kg
420mm
220mm
200m
275mm x 280mm
SAR-EXCELG2
2
5m – 7m
1.2 – 2.8T
9.5kg
460mm
232mm
215mm
310mm x 310mm
SAR-EXCELG3
3
7m – 10m
2.8 – 3.5T
12.5kg
525mm
270mm
250mm
350mm x 355mm
SAR-EXCELG4
4
10m – 12m
3.5 – 7.0T
16.0kg
560mm
285mm
265mm
370mm x 380mm
SAR-EXCELG5
5
12m – 15m
7.0 – 15T
22kg
635mm
330mm
300mm
415mm x 425mm
SAR-EXCELG6
6
15m – 17m
15 – 21T
30kg
695mm
350mm
330mm
450mm x 460mm
SAR-EXCELG7
7
17m – 19m
21 – 24T
36kg
718mm
375mm
340mm
480mm x 495mm
SAR-EXCELG8
8
19m – 21m
24 – 28T
40kg
750mm
385mm
355mm
500mm x 510mm
SAR-EXCELG9
9
21m – 23m
28 – 32T
50kg
770mm
405mm
365mm
520mm x 530mm
SAR-EXCELG11
11
23m – 25m
32 – 36T
55kg
810mm
410mm
380mm
535mm x 555mm
SAR-EXCELG13
13
25m – 27m
36 – 42T
63kg
840mm
430mm&nb…
