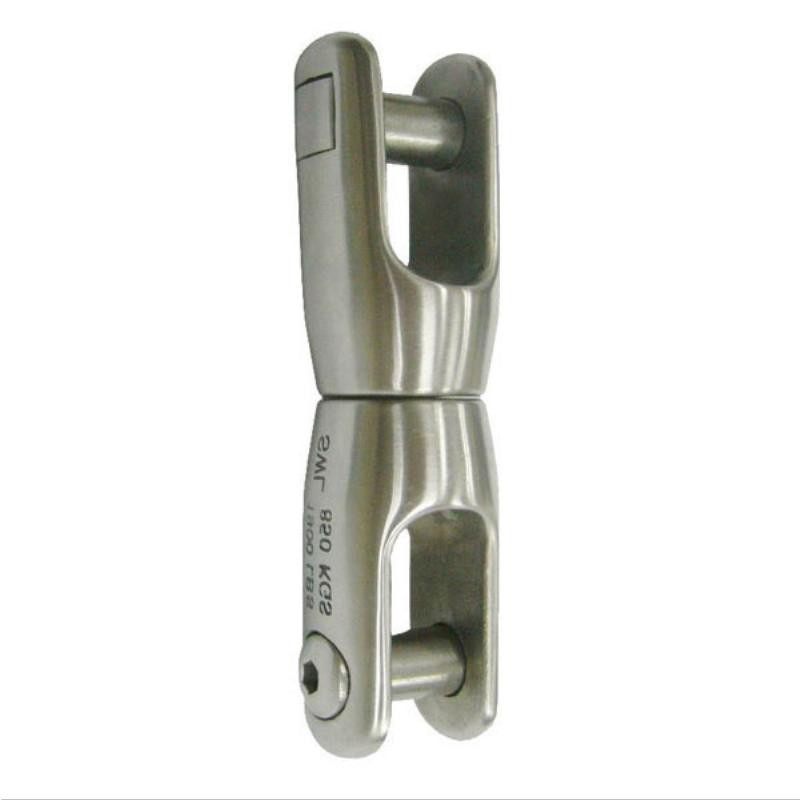

Marine Town Anchor Connector Swivels – Stainless Steel – Rope

High quality cast and polished 316 grade stainless steel anchor connector swivels designed for use between anchor shaft and chain (143132, 143134). When setting the
anchor the swivel prevents the chain from becoming twisted allowing for easy deployment and retrieval.
A smooth overall snag free finish helps the swivel slide freely over bow rollers and deck. The captured pin can be easily removed via an allen key (included) and ensures the fastening pin will not loosen when under load.

Part Number
Length
Application
Length (A)
Bottom Internal Width (B)
Top Internal Width (C)
Bottom Internal Height (D)
Top Internal Height (E)
S.W.L

MTN-143138
100mm
Rope
100mm
16mm
16mm
37mm
37mm
1300kg
