Marine Town Anchor Connector Swivels – Stainless Steel – Chain

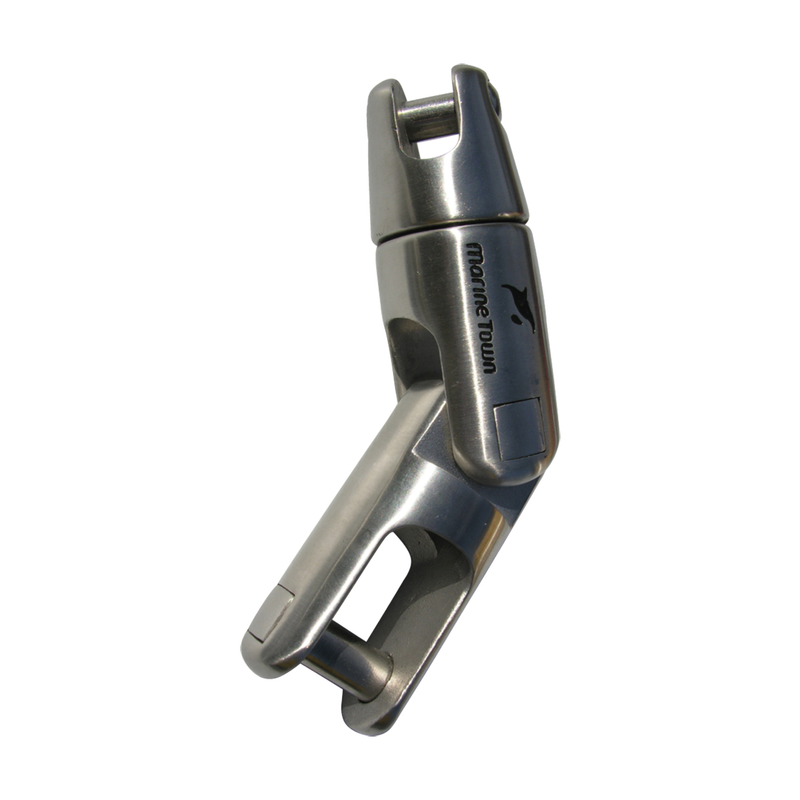

High quality cast and polished 316 grade stainless steel anchor connector swivels designed for use between anchor shaft and chain (143132, 143134). When setting the anchor the swivel prevents the chain from becoming twisted allowing for easy deployment and retrieval.
A smooth overall snag free finish helps the swivel slide freely over bow rollers and deck. The captured pin can be easily removed via an allen key (included) and ensures the fastening pin will not loosen when under load.
Part NumberLengthApplicationLength (A)Bottom Internal Width (B)Top Internal Width (C)Bottom Internal Height (D)Top Internal Height (E)S.W.L
MTN-143132
134mm
Chain
134mm
15mm
9mm
40mm
25mm
850kg
MTN-143134
154mm
Chain
154mm
22mm
13mm
44mm
25mm
1350kg
