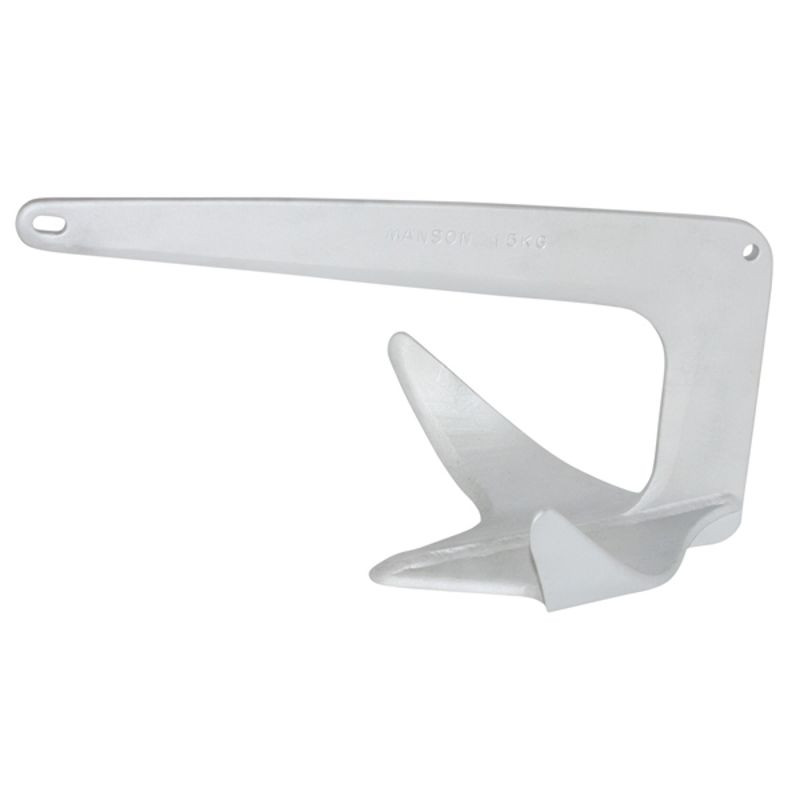

Manson Anchors – Ray Anchor (HHP) – Galvanised

Manson Anchors – Ray Anchor (HHP) – Galvanised
Wings ensure the anchor sets quickly and resets in a variety of bottom conditions.
Fabricated in the highest quality steel plate – not cast.
Weighted toe and curved flukes to ensure the anchor lands the right way up for immediate setting.
Certified to Lloyd’s Register as a High Holding Power (HHP) anchor.

Part Number
Weight
Length (A)
Width (C)
Depth (B)

SAW-124040
10kg (22lb)
570mm
390mm
320mm

SAW-124042
15kg (33lb)
680mm
445mm
380mm

SAW-124044
20kg (44lb)
710mm
465mm
400mm

SAW-124046
25kg (55lb)
710mm
465mm
400mm

SAW-124048
30kg (66lb)
810mm
540mm
455mm

SAW-124050
35kg (77lb)
810mm
540mm
455mm

SAW-124052
40kg (88lb)
860mm
590mm
485mm

SAW-124054
50kg (110lb)
932mm
640mm
525mm

SAW-124056
65kg (143lb)
969mm
539mm
657mm

SAW-124058
80kg (176lb)
1060mm
710mm
595mm
