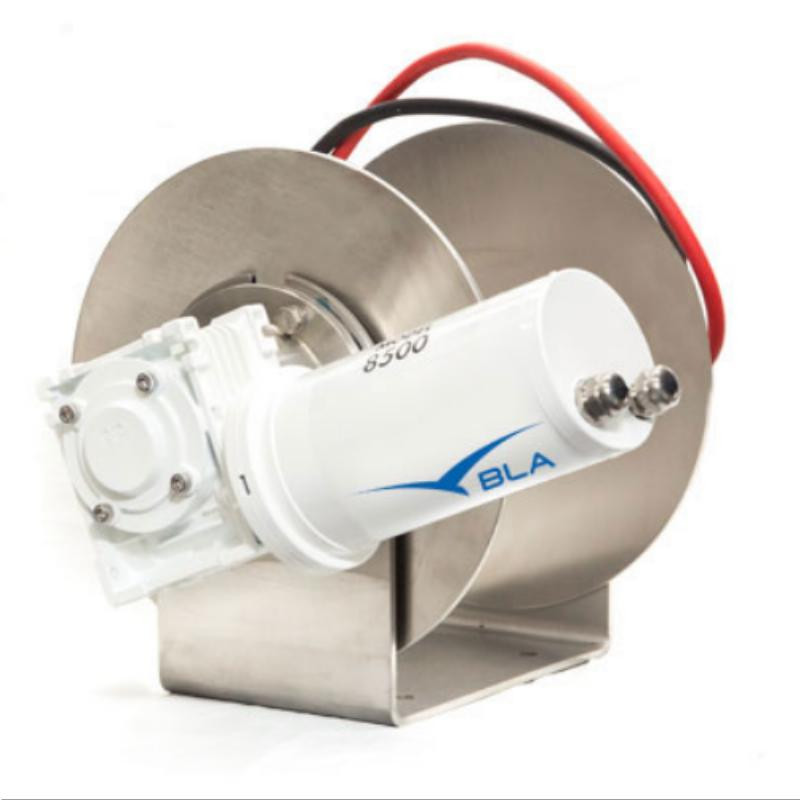

BLA Drum Winch – 8500 Model

All BLA Drum Winches feature a sealed motor and gearbox with a 316 grade stainless steel drum and body to protect from water ingress and corrosion and comes complete with double braid rope, chain and switchgear for hassle free anchoring.
8500 Series Model
The 8500 Series Model is the largest electric boat anchor winch in our range. The 8500 Winch is suitable for boats up to 8 metres long. With a robust oversized worm gearbox – to take higher shock loads this winch is powerful and made to last.
Features:
Motor is fully sealed from corrosion/water. No exposed terminals
Custom rope kits available to suit any anchoring depth
3 year warranty – Australian designed
Motor & gearbox can be adjusted in 12 positions to drum
Retailed packaged
153110 Kit Includes:
Motor and gearbox
316 Grade stainless steel drum
Up/down solenoid switch
Circuit breaker
Double braid rope and chain kit
Backing plate and bolts
Guide roller

Part Number
Drum Size
Max Vessel Size
Rope Length
Chain Length
Total Length
Overall Height (A)
Overall Width (B)
C
Winch Height (D)
Winch Width (E)

BLA-153130
300mm
8.5m
92m x 8mm
8m
100m
390mm*
377mm
280mm
300mm
140mm

N.B. * measurement does NOT include waterproof glands or wire 153110 only has 8 mounting positions at time of printing
